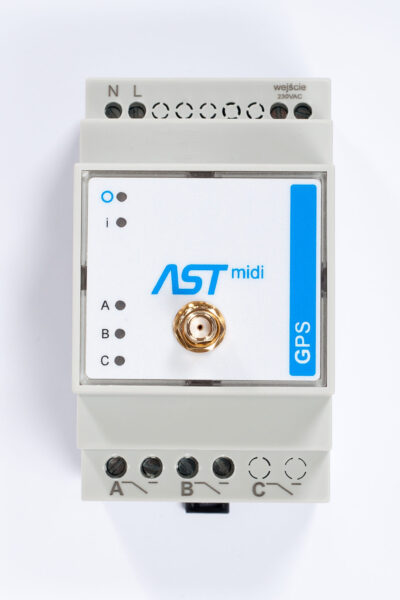

ASTmidi GPS + A

STREET LIGHTING CONTROLLER WITH EXTERNAL GPS ANTENNA

ASTmidi GPS + A is an advanced astronomical street lighting controller equipped with an external GPS antenna, designed for reliable and fully automatic control of outdoor lighting systems. The external antenna ensures accurate time synchronization and GPS positioning, even in demanding installation environments.

Using GPS technology, the controller automatically determines its geographical position and calculates the optimal switching times for street lighting. Installation is quick and straightforward—simply connect the power supply and controlled circuits, and the controller automatically configures its operating parameters.

Designed for installation on a standard 35 mm DIN rail, the controller occupies only 3 DIN modules, making it an ideal solution for both new installations and retrofit lighting control cabinets.

Features

ASTmidi GPS incorporates all the capabilities of the AST controller family while offering additional functions that enhance configuration flexibility and operational efficiency.

The controller is available with 2 or 3 independent relay outputs (the third output is optional), includes a photocell/cascade input, and features integrated Bluetooth communication for wireless configuration using a mobile application.

The controller automatically:

  • synchronizes its internal clock with GPS satellites,
  • determines the installation location,
  • calculates astronomical sunrise and sunset switching times,
  • automatically adjusts for daylight saving time,
  • eliminates manual configuration of location and time.

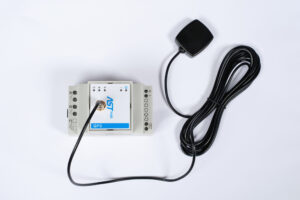

Internal or External GPS Antenna

ASTmidi GPS is available in two hardware versions:

  • Internal GPS antenna – suitable for most standard outdoor lighting cabinets.
  • External GPS antenna – recommended for installations inside buildings, electrical rooms, metal enclosures, or any location where GPS reception may be limited.

A high-sensitivity 72-channel GPS receiver provides fast satellite acquisition and reliable time synchronization, ensuring accurate operation under challenging installation conditions.

ASTmobile – Wireless Configuration and Management

ASTmidi GPS is fully compatible with the free ASTmobile Android application.

The integrated Bluetooth interface enables complete wireless configuration without opening the control cabinet or using programming cables.

Using ASTmobile, users can:

  • monitor the controller status,
  • modify operating parameters,
  • display the installation location on a map,
  • synchronize controller settings,
  • save and restore configurations,
  • review the event history,
  • manually activate relay outputs for maintenance,
  • update the controller firmware wirelessly.

Key Features

  • Automatic astronomical switching based on GPS position.
  • GPS time synchronization.
  • Automatic daylight saving time adjustment.
  • User-defined time correction up to ±240 minutes.
  • Three seasonal correction modes: Summer/Winter, Monthly, and Quarterly.
  • Up to four programmable switching periods for each day of the week.
  • Support for 20 special calendar events (holidays, celebrations, special occasions).
  • Compatible with photocell and cascade control signals.
  • Operation based on astronomical tables.
  • Wireless editing and uploading of switching schedules.
  • Independent control of outputs A, B and C.
  • Manual service activation of outputs for 1, 10, 30 minutes or permanently.
  • Event log storing up to 600 events.
  • Relay operating time counters.
  • Configuration backup and event export via Bluetooth or e-mail.
  • Wireless firmware upgrade.
  • PIN code protection and one-time service passwords.
  • Factory reset function.

Technical Specifications

Power Supply

  • Supply voltage: 230 V AC / 50 Hz
  • Operating voltage range: −20% / +10%

Outputs

  • 2 or 3 independently programmable relay outputs
  • Switching capacity: 5 A / 230 V AC

Inputs

  • 1 × 230 V AC input
  • Configurable as:
    • Photocell input
    • Cascade input
    • General-purpose information input

GPS

  • 72-channel GPS receiver
  • Receiver sensitivity: −167 dBm
  • SMA antenna connector
  • Automatic GPS time and location synchronization

Communication

  • Integrated Bluetooth interface
  • Encrypted bidirectional communication

Memory

  • Storage for up to 600 recorded events
  • User configuration memory

Backup Battery

  • Battery life up to 5 years (without mains power)

Environmental Conditions

  • Operating temperature: −30°C to +80°C
  • Protection rating: IP20

Mechanical Data

  • Mounting: 35 mm DIN rail
  • Width: 53 mm
  • Height: 95 mm
  • Depth: 58 mm
