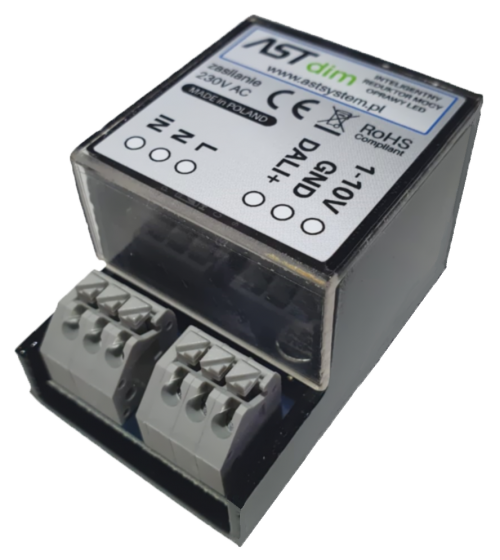

ASTdim

INTELLIGENT LUMINAIRE POWER REDUCTION CONTROLLER

Device Description

ASTdim is an intelligent controller designed for power management of LED and conventional luminaires equipped with DALI or 1–10 V control interfaces. The controller enables automatic power reduction according to programmable time schedules, significantly reducing energy consumption while maintaining the required lighting performance.

ASTdim supports both DALI and 1–10 V control interfaces simultaneously, eliminating the need to select the active control method during installation. This makes the controller suitable for a wide range of new lighting installations as well as modernization projects.

Designed for installation directly inside the luminaire, ASTdim offers simple integration with existing lighting infrastructure while providing advanced energy-saving functionality.

Intelligent Power Reduction

ASTdim supports up to five independently programmable power reduction periods, allowing lighting output to be precisely adjusted according to traffic conditions, operating schedules, or project requirements.

Each programmable period includes:

  • Start time
  • End time
  • Power level

This approach enables substantial energy savings without compromising lighting quality, user comfort, or operational safety.

Flexible Lighting Control

The controller features two industry-standard lighting control interfaces:

  • DALI
  • 1–10 V

Both interfaces operate simultaneously, eliminating the need to configure or select the control protocol.

ASTdim also includes a 230 V AC trigger input, allowing integration with external devices such as motion sensors.

When the trigger input is activated, the controller immediately disables power reduction and restores the luminaire to full light output. Once the trigger signal is removed, the controller automatically returns to the programmed dimming level.

The controller is configured using a predefined power cycling sequence. Power reduction schedules can also be programmed locally using ASTmicro controllers and the mobile application or remotely via ASTgsm controllers using the web platform.

Key Features

  • Intelligent luminaire power reduction based on programmable schedules.
  • Support for up to 5 independently programmable dimming periods.
  • Simultaneous support for DALI and 1–10 V control interfaces.
  • Power level adjustment with 10% resolution.
  • Time schedule programming with 15-minute resolution.
  • 230 V AC trigger input for motion sensors and other external devices.
  • Automatic restoration of full light output after trigger activation.
  • Local configuration using ASTmicro controllers.
  • Remote configuration using ASTgsm controllers.
  • Compact design for installation inside lighting luminaires.
  • Significant reduction of energy consumption while maintaining optimal lighting performance.

Technical Specifications

Control Functions

  • Up to 5 programmable power reduction periods
  • Power level resolution: 10%
  • Time programming resolution: 15 minutes

Control Interfaces

  • DALI
  • 1–10 V
  • Trigger input: 230 V AC

Power Supply

  • Supply voltage: 230 V AC / 50 Hz
  • Power consumption: 0.5 W

Installation

  • Installation inside lighting luminaires

Environmental Conditions

  • Operating temperature: −30°C to +80°C
  • Protection rating: IP20 (optional IP67)

Dimensions

  • 37 × 53 × 32 mm

Wiring Diagram

The ASTdim wiring diagram is provided in the technical documentation section.
