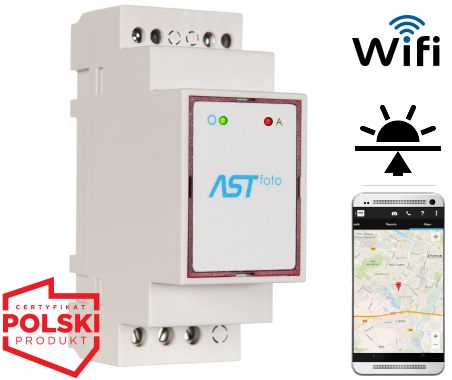

Intelligent Lighting Control
ASTfoto automatically controls lighting based on real-time measurements provided by the ASTsensor01 digital light sensor.
Using the mobile application, users can configure:
- Lighting switch-on threshold.
- Lighting switch-off threshold.
- Twilight switch operating parameters.
The controller incorporates an advanced filtering algorithm that ignores short-term changes in ambient light caused by vehicle headlights, flashlights, or other temporary light sources, preventing unwanted switching operations.
Wireless Wi-Fi Configuration
ASTfoto is fully compatible with the free ASTfoto mobile application, providing complete configuration and diagnostics directly from a smartphone or tablet.
Communication is performed via a secure Wi-Fi connection using WPA/WPA2 encryption.
Using the mobile application, users can:
- Adjust switch-on and switch-off thresholds.
- Monitor the current ambient light level.
- View the controller operating status.
- Perform service switching for 1, 10, or 30 minutes, or continuous operation.
- Review the event history.
After service mode is completed, the controller automatically returns to normal operation using the configured lighting thresholds.
Event Logging
ASTfoto records key operating events, providing complete supervision of the lighting installation.
The controller stores information including:
- Lighting switch-on events.
- Lighting switch-off events.
- Power restoration events.
The recorded history can be viewed directly within the mobile application.
Key Features
- Configuration and management using the ASTfoto mobile application.
- Wireless Wi-Fi communication.
- Secure WPA/WPA2 encrypted data transmission.
- Programmable lighting switch-on and switch-off thresholds.
- Real-time ambient light level monitoring.
- Integrated real-time clock.
- Automatic time synchronization using the smartphone’s GPS location.
- Automatic daylight saving time adjustment.
- Service activation for 1, 10, or 30 minutes, or continuous operation.
- Storage of up to 50 recorded events.
- Intelligent filtering algorithm preventing unwanted switching caused by temporary light sources.
- Remote firmware updates using the dedicated PC application.
- LED indicators showing power, output, and communication status.
- Password-protected controller access.
- Factory reset function.
Technical Specifications
Power Supply
- Supply voltage: 230 V AC / 50 Hz
- Operating voltage range: −20% / +10%
Outputs
- 1 relay output (changeover contact)
- Relay rating: 5 A / 230 V AC
Inputs
- 1 input for ASTsensor01 digital light sensor
- Light measurement range: 1–100 lx
Communication
- Integrated Wi-Fi interface
- IEEE 802.11 b/g/n
- WPA/WPA2 security
Memory
- Storage for up to 50 recorded events
- User configuration memory
Backup Power
- Backup battery for the real-time clock
- Battery life up to 5 years (without mains power)
Mechanical Characteristics
- Screw terminal connections
- Maximum conductor size: 2.5 mm² (AWG14)
Environmental Conditions
- Operating temperature: −30°C to +80°C
- Protection rating: IP20
Installation
- 35 mm DIN rail mounting
- Width: 35 mm
- Height: 90 mm
- Depth: 65 mm

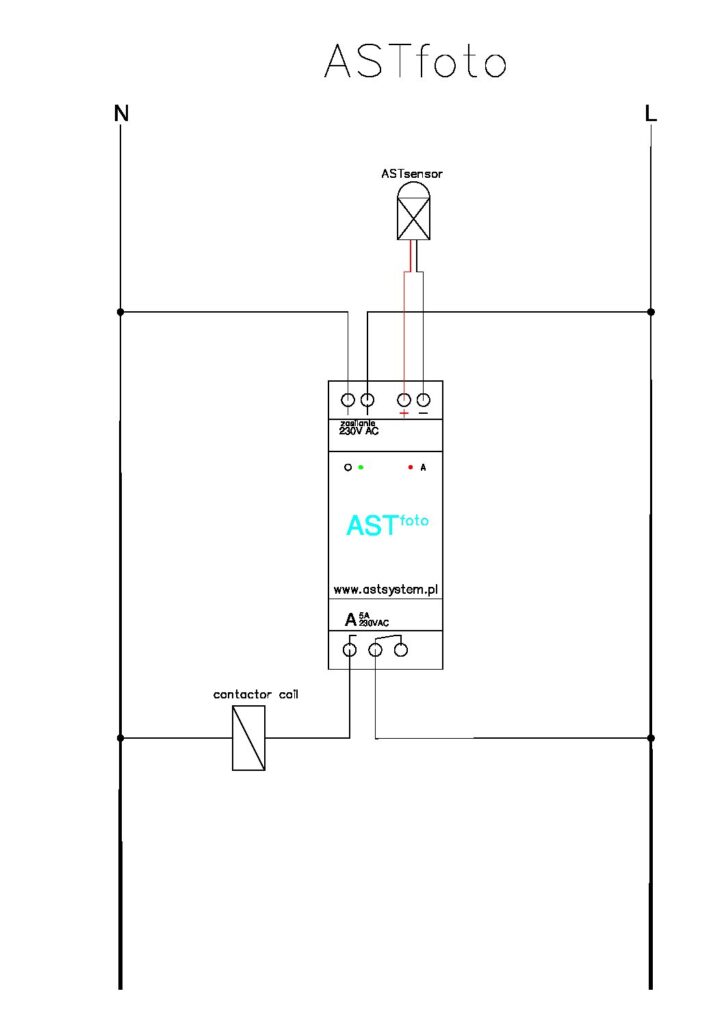

Wiring Diagram
The ASTfoto wiring diagram is provided in the technical documentation section.
