ASTdim NEMA

Intelligent Power Reduction

ASTdim NEMA supports up to five independently programmable power reduction periods, allowing lighting output to be precisely adjusted according to traffic conditions, operating schedules, or project requirements.

Each programmable period includes:

Start time
End time
Power level

This intelligent control strategy significantly reduces electricity consumption while maintaining lighting quality, operational safety, and user comfort.

Flexible Configuration

The controller is programmed using a predefined power cycling sequence.

Power reduction parameters can be configured:

Locally using ASTmidi or ASTmicro controllers together with the mobile application.
Remotely via an ASTgsm controller using the web platform.

ASTdim NEMA also features a 230 V AC trigger input for integration with external devices such as motion sensors.

When the trigger input is activated, the controller immediately disables power reduction and restores the luminaire to full light output. Once the trigger signal is removed, the controller automatically returns to the programmed dimming level.

Key Features

Intelligent power reduction based on programmable schedules.
Support for up to 5 programmable power reduction periods.
Compatible with DALI and 1–10 V control interfaces.
Power level adjustment with 10% resolution.
Time schedule programming with 15-minute resolution.
230 V AC trigger input for motion sensors and other external devices.
Automatic restoration of full light output after trigger activation.
Local configuration using ASTmidi and ASTmicro controllers.
Remote configuration via ASTgsm controllers.

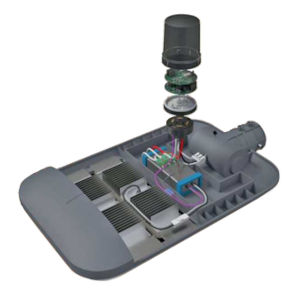

Compact design for installation in a standard NEMA 76 mm 5-pin socket.
Significant reduction of energy consumption while maintaining optimum lighting performance.
